Hydraulic Ram Style Dispersion Kneader Mixer Machine

Compounding for rubber, plastic & chemical industries

Features:

The dispersion kneader mixer (Hydraulic ram) machine is the most suitable kneading application for all kinds of Rubber, Plastic and Chemical materials.

This machine with following features:

  • High quality processed products.
  • Easy for color changing.
  • Easy for operating/increase production.
Photos:

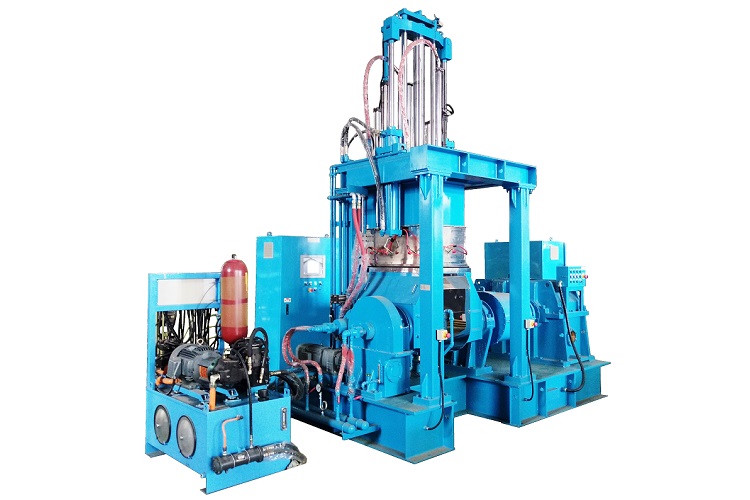

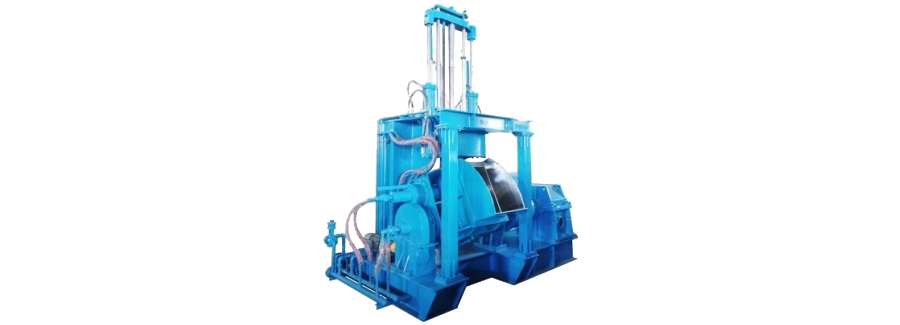

Dispersion Kneader Hydraulic ram

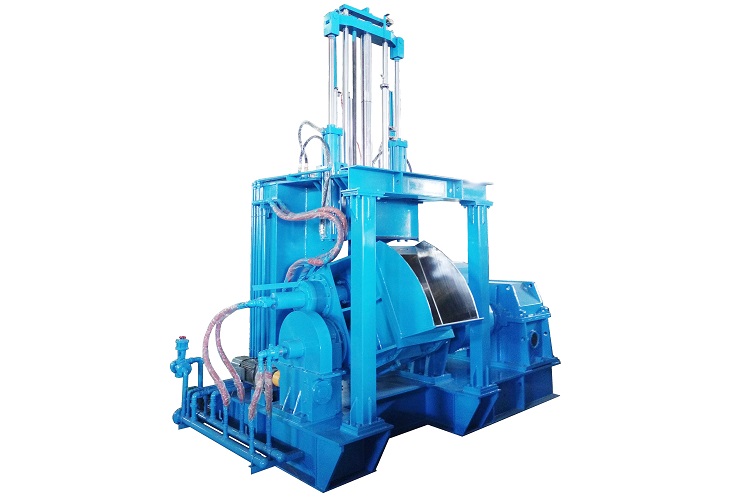

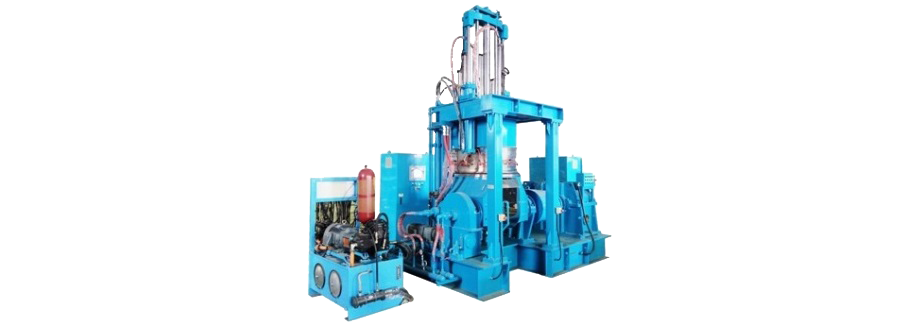

Dispersion Kneader Hydraulic ram
Positioning cylinder
Hydraulic pressure prevention leak
Specification of Hydraulic Ram Style Dispersion Kneader Mixer Machine:

Model

Mixing capa.

Main power

Brake motor

Oil Pump Motor

Tilting angle

Temp. control

KD-3-20

3 L

20   HP

1/2  HP

10~20 HP

Max. 140°

AUTO

KD-5-20

5 L

20   HP

2   HP

10~20 HP

Max. 140°

AUTO

KD-10-30

10 L

30   HP

2   HP

10~20 HP

Max. 140°

AUTO

KD-20-60D

20 L

60   HP

3   HP

10~20 HP

Max. 140°

AUTO

KD-35-100D

35 L

100  HP

3   HP

10~20 HP

Max. 140°

AUTO

KD-35-150D

35 L

150  HP

3   HP

10~20 HP

Max. 140°

AUTO

KD-55-150D

55 L

150  HP

5   HP

15~25 HP

Max. 140°

AUTO

KD-55-200D

55 L

200  HP

5   HP

15~25 HP

Max. 140°

AUTO

KD-75-250D

75 L

200/250 HP

7.5  HP

15~25 HP

Max. 140°

AUTO

KD-110-300D

75 L

250/300 HP

7.5  HP

15~25 HP

Max. 140°

AUTO

KD-110-350D

110L

300/350 HP

7.5  HP

15~25 HP

Max. 140°

AUTO

KD-150-400D

150L

350/400 HP

10  HP

15~25 HP

Max. 140°

AUTO

KD-150-500D

150L

450/500HP

10  HP

15~25 HP

Max. 140°

AUTO

KD-200-500D

200L

500  HP

15  HP

15~25 HP

Max. 140°

AUTO

KD-300-600D

300L

600  HP

15  HP

15~25 HP

Max. 140°

AUTO
