Intensive Mixer ( Banbury Mixer)

Compounding For Rubber、Plastic & Chemical Industries

Features:
  • Rotors: Two wings design with good cooling design. Excellent cooling ability. Anti-wearing treatment on the surface.
  • Chamber: Drill hole type jacket. Excellent cooling ability. Material contact surface: Hard chrome plating and fine polish.
  • Discharge door: Excellent sealing. No material leakage.
  • Ram: Drive by air cylinder. Good mixing and dispersion quality.
Photos:

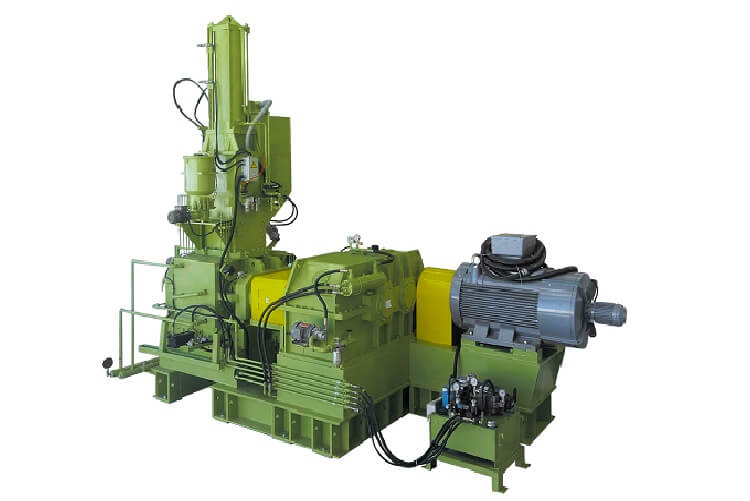

Intensive Mixer

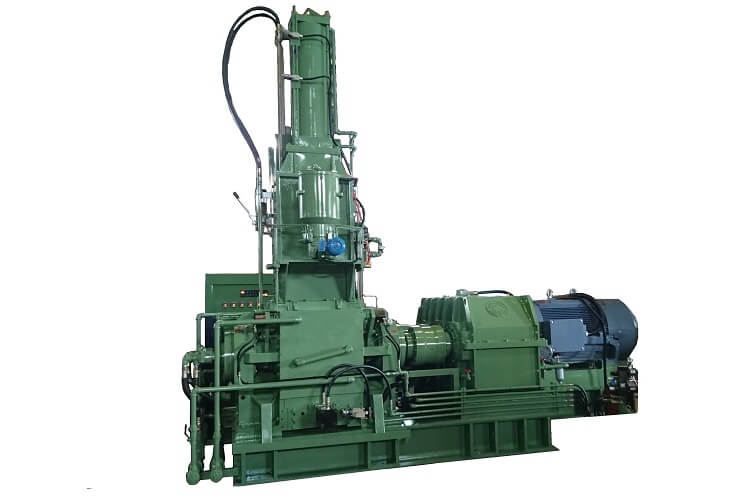

Intensive Mixer
Specifications:
Model Mixing capa. Main power(HP) Hydraulic power Lubricator Temp. control Dust Collector
KD-IM-50 50 L 150 ~ 200 3 HP 1/2 HP AUTO 1/2 HP
KD-IM-75 75 L 200 ~ 400 5 HP 1/2 HP AUTO 1 HP
KD-IM-100 100 L 300 ~ 500 7.5HP 1/2 HP AUTO 1 HP
